OVR-04-0 Voltage Protection Relay

Energy Control & Protection Solutions Voltage Protection Relays

The OVR-04-0 Voltage Protection Relay ensures protection for your panel by setting upper and lower voltage limits.

Add to Comparison List

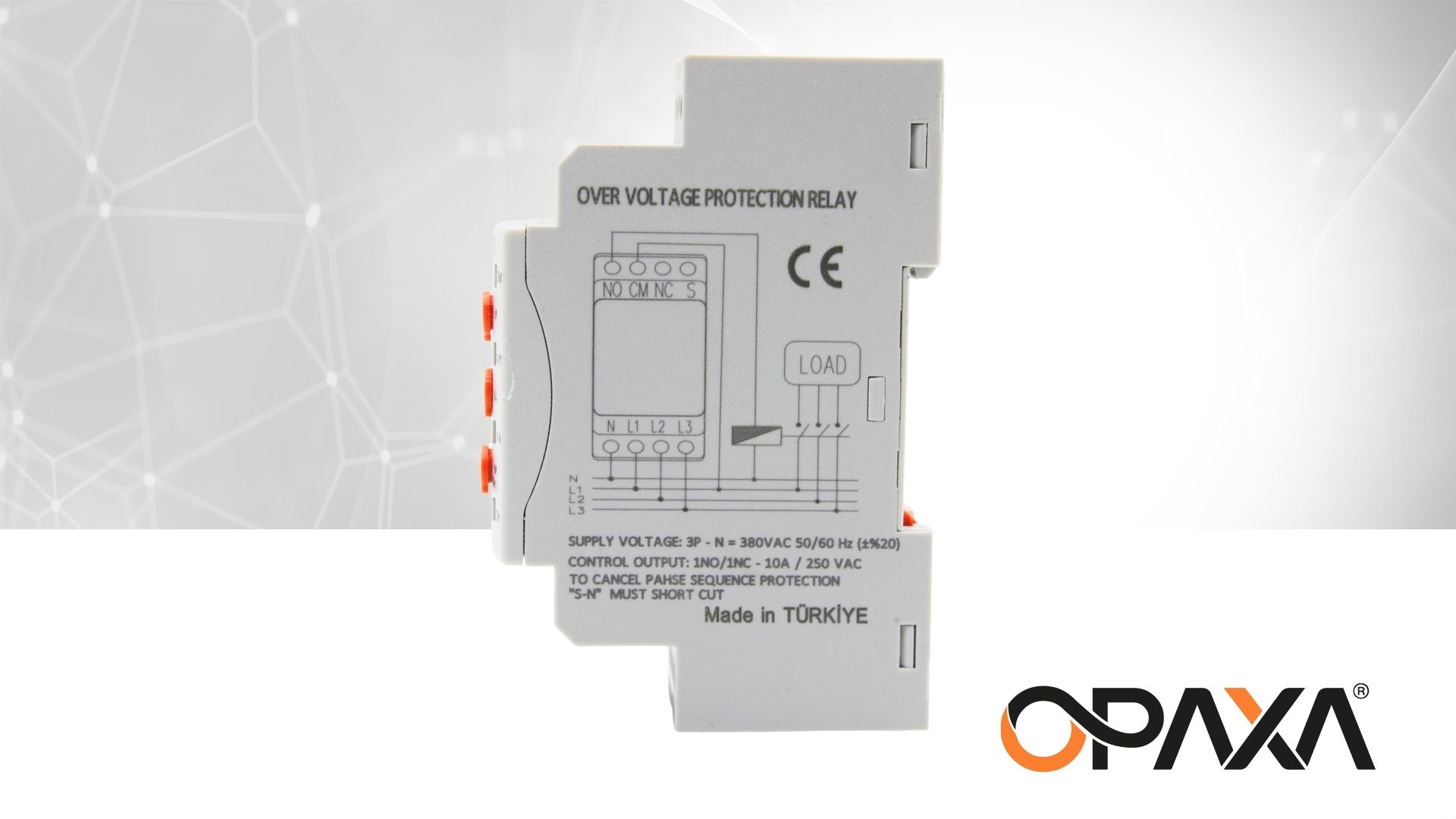

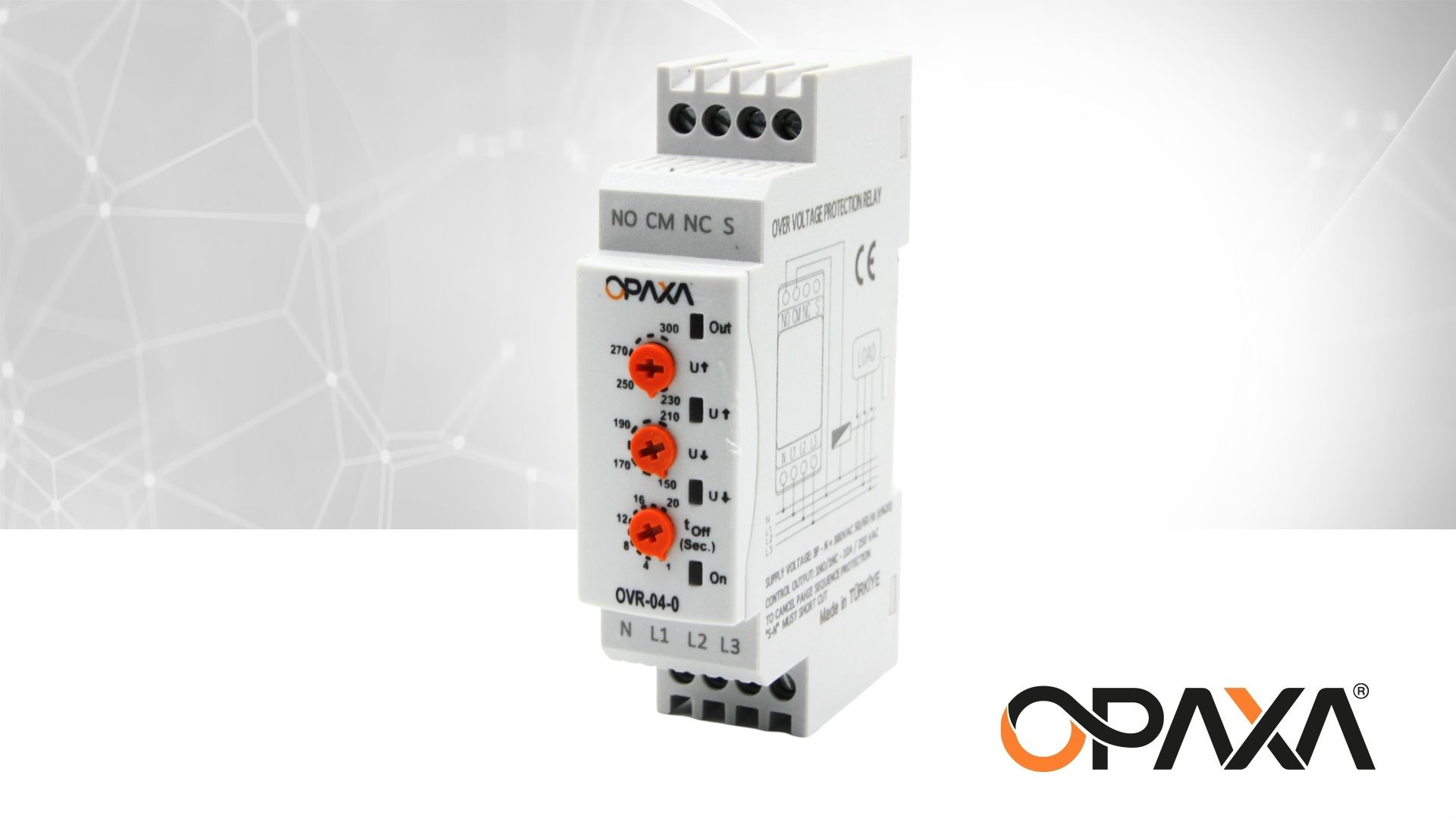

OPAXA OVR-04-0 Voltage Protection Relay

The OVR-04-0 voltage protection relay is designed to supervise supply voltage and intervene when the voltage moves outside the configured upper and lower limits. It is intended for three-phase and single-phase applications such as HVAC systems, compensation panels, capacitor protection and motor-related equipment where voltage quality is important.

Why Choose OPAXA OVR-04-0?

Adjustable Voltage Limits

Separate upper/lower thresholds allow the protection window to be matched to the application.

Dropout Delay

The delayed response can help prevent nuisance operation caused by brief voltage disturbances, subject to the configured device behavior.

Equipment Protection

Voltage supervision adds a dedicated protection layer around loads sensitive to abnormal supply conditions.

Broad Panel Use

Suitable for multiple industrial panel scenarios rather than a single machine type.

Voltage Protection Details

Protection Type

Overvoltage/undervoltage monitoring relay

Limits

Adjustable upper and lower voltage thresholds on the listed model.

Applications

Three-phase/single-phase HVAC, compensation panels, capacitor protection and motor-related equipment.

Engineering Note

Coordinate the relay settings with the actual supply, load tolerance and protection strategy of the installation.

Built for the OPAXA Ecosystem

The OVR-04-0 extends the OPAXA protection approach with a dedicated voltage-monitoring/protection function for three-phase/single-phase HVAC, compensation panels, capacitor protection and motor-related equipment.

]]>

FEATURE	VALUE
Product Code	OVR-04-0
Processor	Microprocessor-based
Operating Temperature	-5 °C to +55 °C
Operating Voltage	220 VAC ±20%
Low voltage setting	Adjustable between 150 V and 210 V
Upper voltage setting	Adjustable between 230 V and 300 V
Hysteresis	5 V (Pull-in)
Release delay	(t-Off): 0.1 s. 20 s
Cable cross-section	1x0.5–4 mm
Screw Tightening Torque Value	0.5 Nm
Standard Compliance	IP20 EN 60529
Operating Frequency	50–60 Hz
Control Output	1 NO/1 NC, 10 A / 250 VAC
Power Consumption	< 7A
Electrical Life	100,000 on-off cycles (Resistive Load)
Mounting Type	Mounted on a DIN rail according to EN 60715 standard, type TH35
