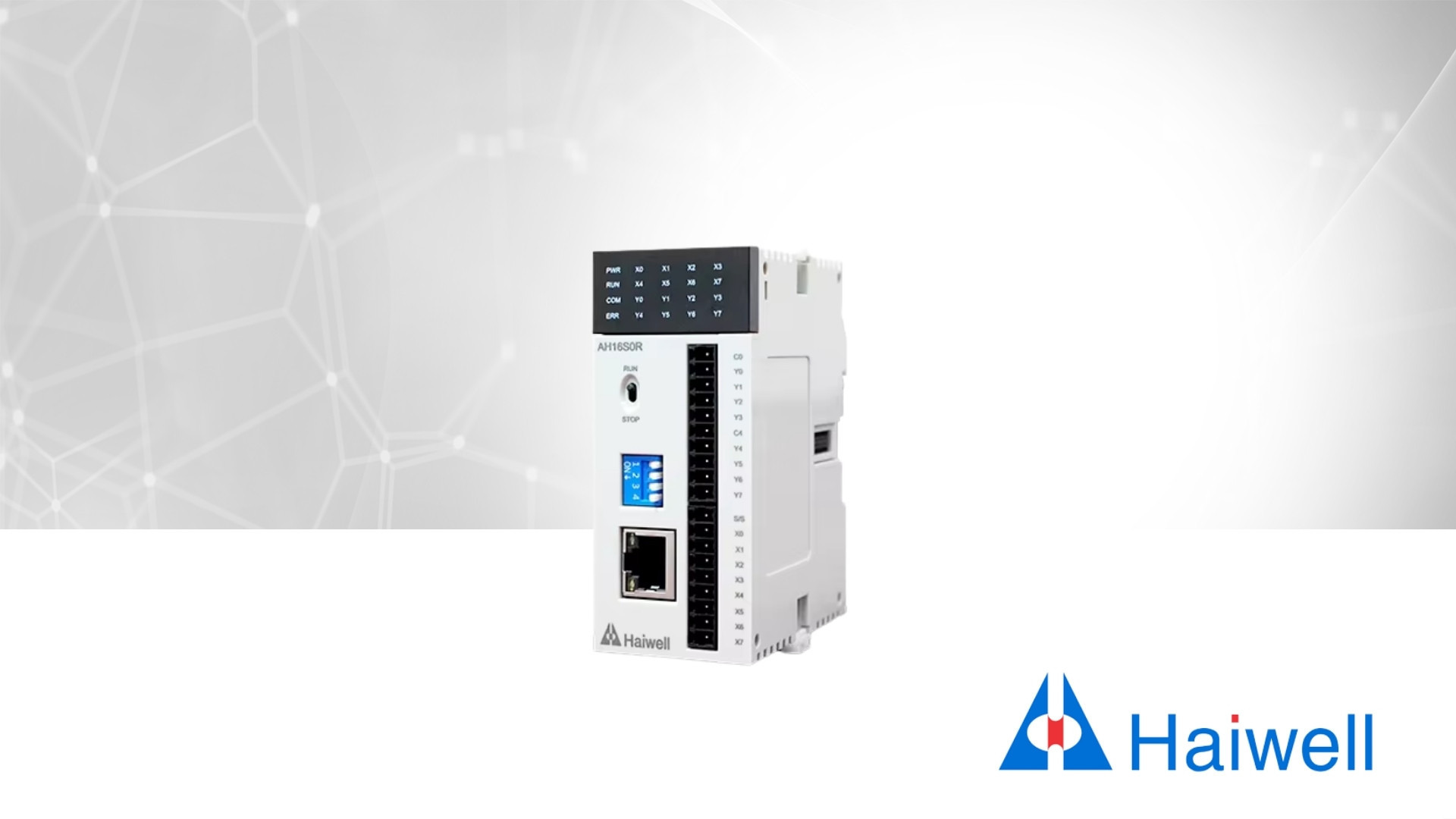

Haiwell AH Series Slim-Type PLC
A new definition of high-speed synchronization in industrial automation. Haiwell AH Series Slim-Type PLC; manages even the most demanding axis control tasks effortlessly with a full 4-channel (8-point) 200 kHz high-speed pulse input and output capacity in its ultra-compact 40 mm housing.[cite: 11] Integrates directly into your facility's data network with standard Ethernet (TCP) and RS485 ports.[cite: 11]
Why Choose the Haiwell AH Series?
4-Axis High-Speed Control
Transistor output (T/P) models provide full support for 4 channels (8 points) of 200 kHz differential A/B-phase pulse input and output.[cite: 11] Provides seamless synchronization (interpolation) for multi-servo and stepper motor control.[cite: 11]
Ultra-Slim Housing and Expansion
Saves cabinet space with its slim design, only 40 mm wide.[cite: 11] Supports up to 15 local expansion modules as system requirements increase, providing flexible scalability.[cite: 11]
Standard Ethernet and RS485
With built-in TCP (Ethernet) and RS485 interfaces, it joins Modbus networks directly without an additional module and communicates instantly with SCADA and HMIs.[cite: 11]
Fast and Reliable Output Options
Offers 8-channel Relay or NPN/PNP Transistor output options according to your application type.[cite: 11] Transistor outputs feature microsecond response times for high-speed switching.[cite: 11]
Technical Advantages in the Field
Microsecond Fast Response
Transistor (T/P) output models control even the highest-speed processes with zero-delay response, offering 10 microseconds on turn-on and 120 microseconds on turn-off.[cite: 11]
Full Optoelectronic Isolation
Each digital input is protected by an independent optoelectronic isolation architecture to keep electrical noise from the field away from the main processor.[cite: 11]
Industrial EMC and Shielding
Equipped with a ±2500V EFT fast-transient filter and ±1000V surge protection against mains fluctuations in demanding industrial environments.[cite: 11]
Vibration and Shock Resistance
Designed for moving systems and heavy machinery, it offers 15G shock resistance and 10-57 Hz mechanical vibration tolerance, ensuring uninterrupted operation even under harsh conditions.[cite: 11]
Power in Compact Cabinets OPAXA
Bring the 4-axis high-speed motion control power of the Haiwell AH Series Slim PLC to the field by using OPAXA LC10 Series Inverters for motor drives; perform all data and alarm management of your system from a single center with next-generation HMI panels
]]>
| Model | Specifications |
Dimensions (mm)
Width x Height x Depth |
||||||||
| 24VDC | DI | DO | AI | AO | Pulse Input | Pulse output | Communication port | Power | Module | |
| AH16S0R | 8 | 8 relays | 4-channel A/B phases, 8 points, 200K | TCP+485 | <4.8W | 15 |
40×95×65
|
|||
| AH16S0T | 8 | 8 NPN transistors | 4-channel A/B phases, 8 points, 200K | 4-channel A/B phases, 8 points, 200K | TCP+485 | <4.8W | 15 | |||
| AH16S0P | 8 | 8 PNP transistors | 4-channel A/B phases, 8 points, 200K | 4-channel A/B phases, 8 points, 200K | TCP+485 | <4.8W | 15 | |||
