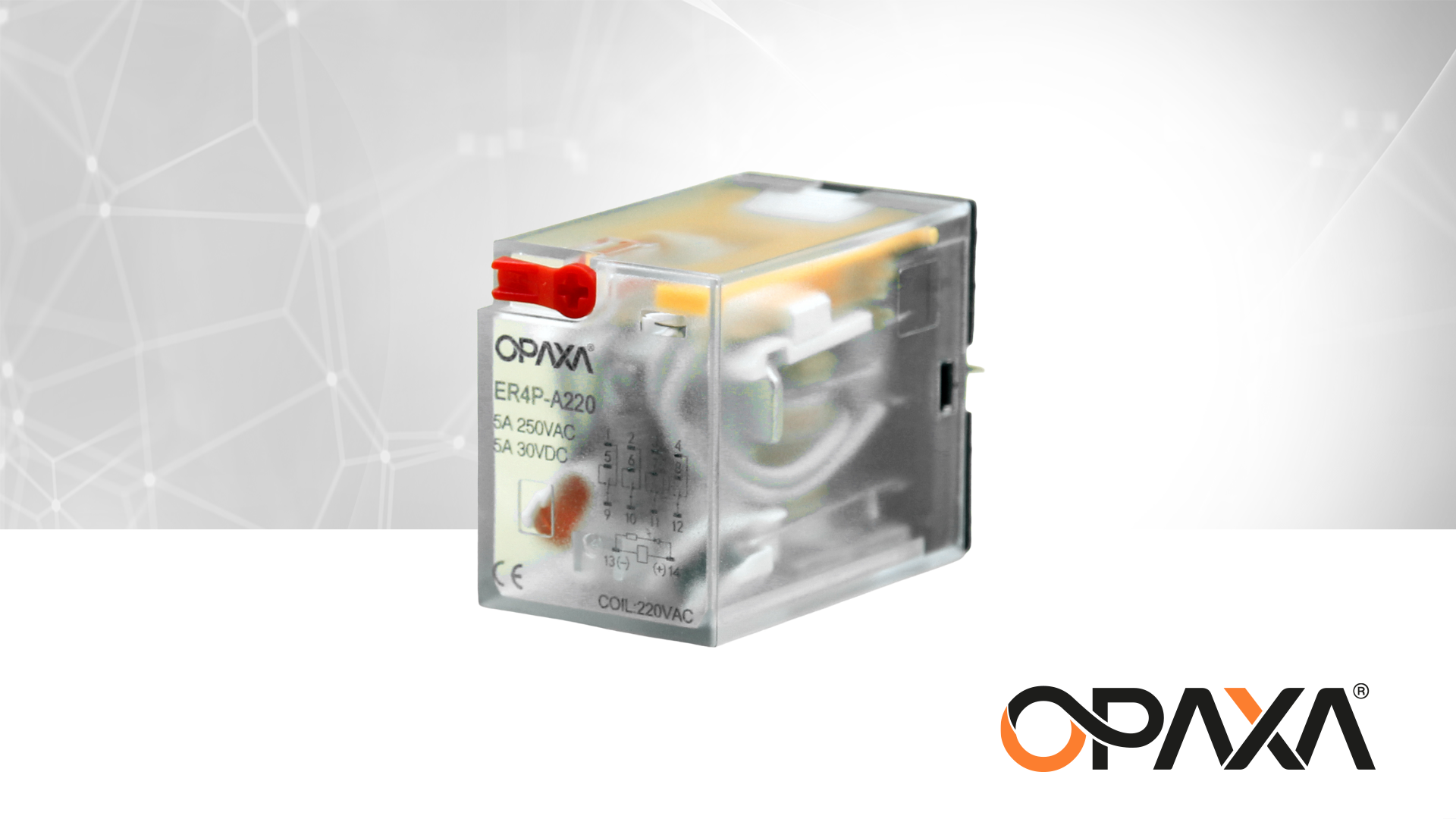

ER4P-A220 220VAC 4-Contact Plug-In Relay

Industrial Relays Plug-in Relays

The ER4P-A220 220VAC 4-Contact Plug-In Relay provides functionality for industrial applications.

Add to Favorites Add to Comparison List

The ER4P-A220 220VAC 4-Contact Plug-In Relay is an industrial relay solution that can be mounted on a rail along with its socket. It offers a balanced product option for users seeking consistent installation, reliable operation, and serial product standards in their projects.

This model, with the product code ER4P-A220 220VAC, stands out for its 220 VAC coil/power supply compatibility and the advantage of easy servicing and replacement in socketed applications. It provides practical use for industrial relay needs in machine panels, electrical control systems, and professional field applications.

The ER4P-A220 220VAC 4-Contact Plug-In Relay can be paired with the ER4P-14PS 4-Contact Plug-In Relay Socket for the optimal product match. To prevent your relay from being affected by excessive vibration, the ER4P-CPS 4-Contact Plug-In Relay Clip is recommended.

TECHNICAL SPECIFICATIONS	2C	4C
Contact Form	2C	4C
Rated Load (Resistive AC-1)	10A/250VAC, 30VDC	5A/250VAC, 30VDC
Rated Load (AC-15 Motor)	1/6 HP, 240 VAC	—
Operating Power (Resistive)	1250VA, 150W	—
Contact Resistance (Initial)	≤50 mΩ	≤50 mΩ
Material	Silver alloy (Ag alloy)	Silver alloy
Electrical Life	≥10⁵ cycles (1,800 operations/hour)	≥10⁵ cycles
Mechanical Life	≥10⁷ cycles (18,000 operations/hour)	≥10⁷ cycles
COIL SPECIFICATIONS	Value
Tensile Strength (23°C)	DC: ≤75% of rated voltage, AC: ≤80% of rated voltage
Release Voltage (23°C)	DC: ≥10% of rated voltage, AC: ≥30% of rated voltage
Max. Allowable Voltage (25°C)	110% of rated voltage
Insulation Resistance	≥500 MΩ (500 VDC)
Coil Power Consumption (DC)	0.9 W
Coil Power Consumption (AC)	1.2 VA
Operating Time (at rated voltage)	≤20 ms
Release Time (at rated voltage)	≤20 ms

INSULATION AND WITHSTANDING CHARACTERISTICS	Value
Initial Dielectric Strength (between contacts)	1000 VAC / 1 min (1 mA leakage)
Between poles	1000 VAC / 1 min
Between contact and coil	2000 VAC / 1 min
ENVIRONMENTAL CONDITIONS	Value
Ambient Temperature	-55 ~ +70°C
Humidity	35% ~ 85% RH
Atmospheric Pressure	86 ~ 106 kPa
Shock Resistance	10G (half-sine wave, 11 ms)
Vibration Resistance	10–55 Hz, peak-to-peak: 1.5 mm
OTHER FEATURES	Value
Mounting Type	Socketed (Plug-in terminals)
Weight	Approx. 35g
Compatible Relay Sockets	2C	4C
		ER4P-14PS
