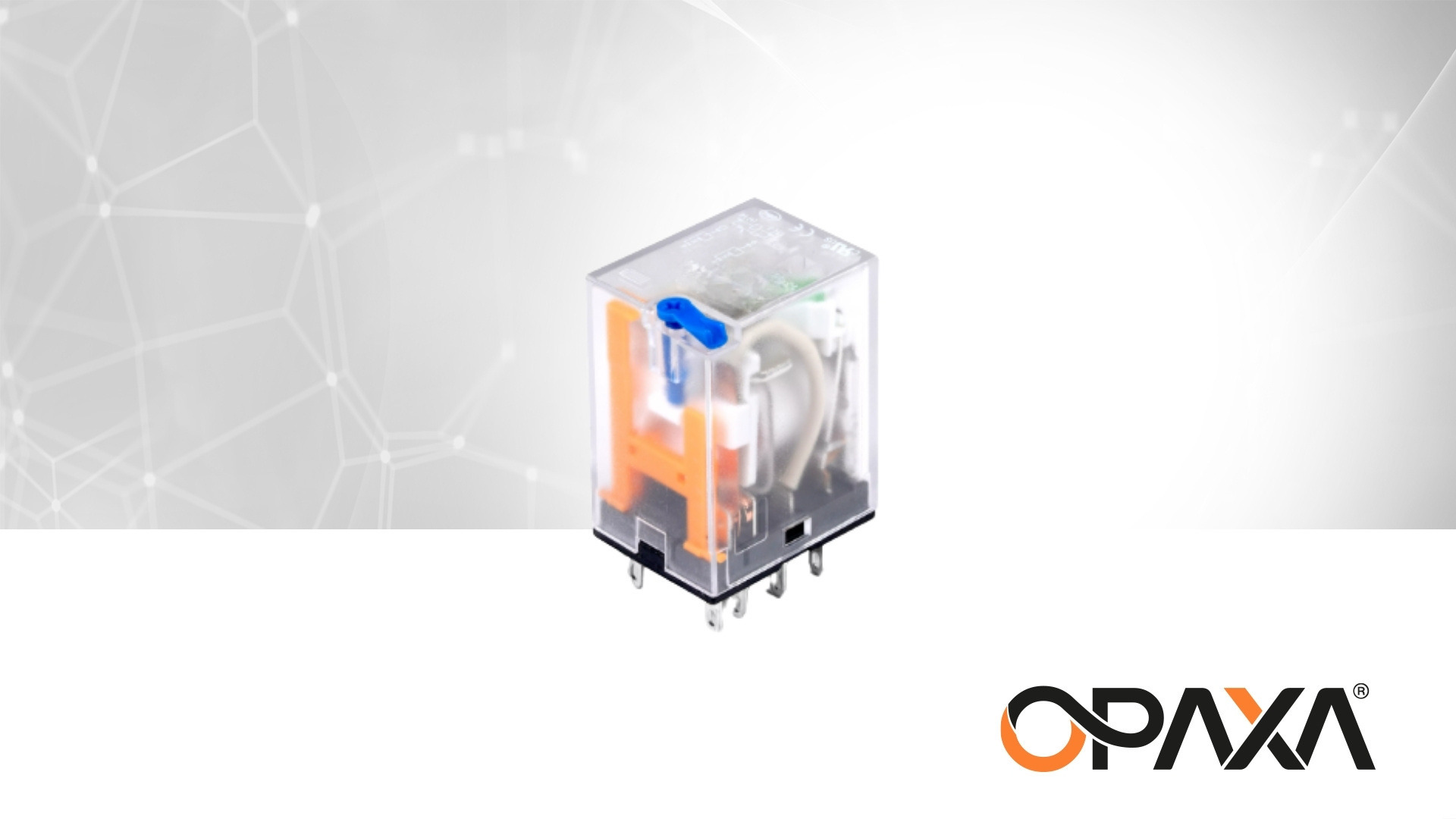

TECHNICAL SPECIFICATIONS

2C

4C

Contact Form

2C

4C

Rated Load (Resistive AC-1)

10A/250VAC, 30VDC

5A/250VAC, 30VDC

Rated Load (Motor AC-15)

1/6 HP, 240 VAC

—

Operating Power (Resistive)

1250VA, 150W

—

Contact Resistance (Initial)

≤50 mΩ

≤50 mΩ

Material

Silver alloy (Ag alloy)

Silver alloy

Electrical Life

≥10⁵ cycles (1,800 operations/hour)

≥10⁵ cycles

Mechanical Life

≥10⁷ cycles (18,000 operations/hour)

≥10⁷ cycles

COIL SPECIFICATIONS

Value

Tensile Strength (23°C)

DC: ≤75% of rated voltage, AC: ≤80% of rated voltage

Release Voltage (23°C)

DC: ≥10% of rated voltage, AC: ≥30% of rated voltage

Max. Allowable Voltage (25°C)

110% of rated voltage

Insulation Resistance

≥500 MΩ (500 VDC)

Coil Power Consumption (DC)

0.9 W

Coil Power Consumption (AC)

1.2 VA

Operating Time (at rated voltage)

≤20 ms

Release Time (at rated voltage)

≤20 ms

INSULATION AND WITHSTANDING CHARACTERISTICS

Value

Initial Dielectric Strength (between contacts)

1000 VAC / 1 min (1 mA leakage)

Between poles

1000 VAC / 1 min

Between contact and coil

2000 VAC / 1 min

ENVIRONMENTAL CONDITIONS

Value

Ambient Temperature

-55 ~ +70°C

Humidity

35% ~ 85% RH

Atmospheric Pressure

86 to 106 kPa

Shock Resistance

10G (half-sine wave, 11 ms)

Vibration Resistance

10–55 Hz, peak-to-peak: 1.5 mm

OTHER FEATURES

Value

Mounting Type

Socketed (Plug-in terminals)

Weight

Approx. 35g

Compatible Relay Sockets

2C

4C

ER4P-14PS
